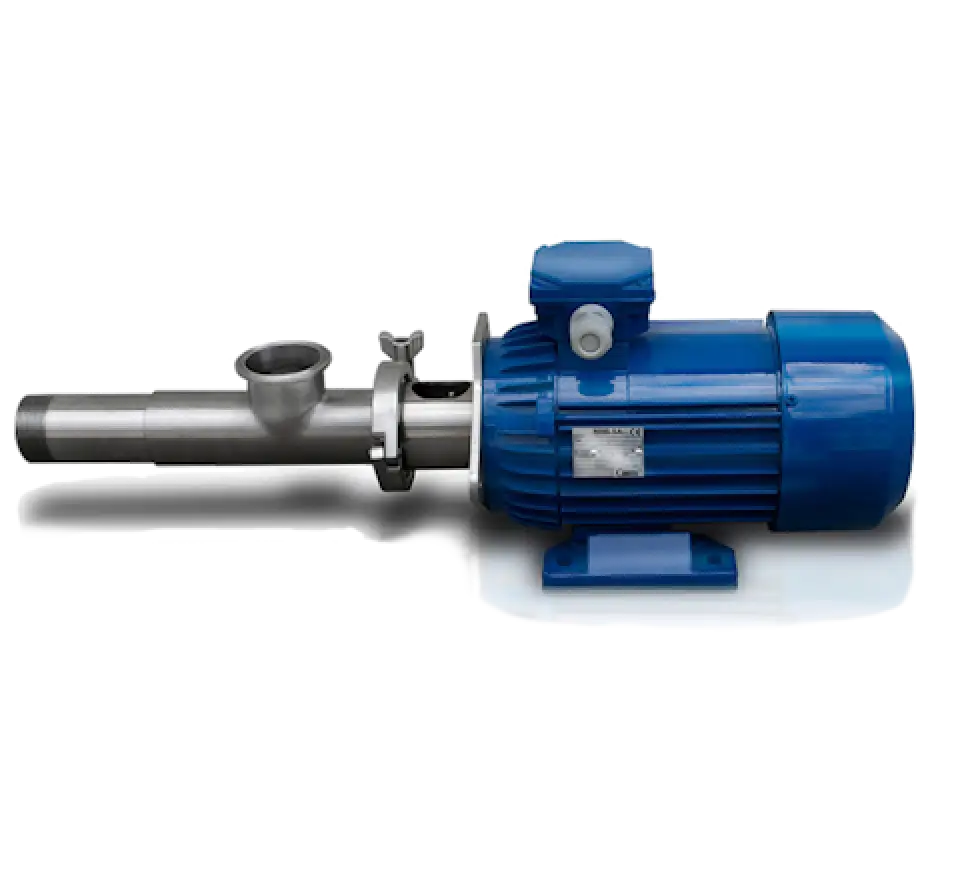

The short screw pump PMWK is used for pumping of chemicals, cosmetic products, pharmaceutical products, CBD products, food products, etc. This product pump can be used for pumping of dense and thin fluids of various viscosities, both neutral and aggressive, such as: creams, gels, paints etc. Pumped fluids can contain solid elements with maximum dimensions of 3 mm, however they should not be abrasive.

Key features of the short screw pump:

  • Short screw pump is made of high quality stainless steel AISI 304
  • Output (measured for water): 0.16-0.65 l/s (5-20 l/min)
  • Accessories: motor protection with switch in casing, model C11; power supply cable (10 rm) with a plug; stub connection to outgoing hose (available in various diameters)
  • Compatible with the tube filling and sealing machine, model NTT-400A and aluminum tube filling and crimping machine, model NTA-400

Click for PMWK brochure

Technical Specification:

  • Output (measured for water): 0.16-0.65 l/s (~ 5-20 l/min)
  • Maximum pressure on output: 0.8 MPa
  • Maximum fluid temperature: 95º C
  • Fluid viscosity: up to 2,300 cS
  • Diameter of barrel hole: >Ø50mm

Device Parameters:

  • Motor / power (options):
    • 1x230V, 50Hz, 1.1kW, 1,400 rpm
    • 3x400V, 50Hz, 1.5kW, 1,380 rpm
  • Pump weight excl. accessories: ~ 14-20kg
  • The device is made of stainless steel AISI 316
  • Rubber used in pump stator: ethylene propylene diene monomer rubber (EPDM)

Possible application of the barrel pump for dense liquids:

The PMWK screw pump can be used for pumping various liquids between containers or machines. Both dense and thin fluids can be pumped, including cosmetic products, personal care products, pharmaceutical products, CBD products, food products, gels, creams, etc.

Selected Clients:

♦ Manufacturers of Cosmetics and Industrial Products ♦



♦ Manufacturers of Pharmaceuticals ♦

♦ Manufacturers of Tubes ♦
