Features of New Pharmaceutical Grade Tube Filling and Sealing Machines

  • The machines are constructed from stainless steel AISI 304, all elements having contact with product are made of stainless steel AISI 316
  • Options to have contact parts polished mechanically and passivated or electropolished
  • Hygienic filling device is dismantlable for sterilization of all contact parts
  • Application of lubricants complying with FDA21 CFR
  • The machines are manufactured in accordance to EC directives and are marked with a CE mark

Additional options include:

  • Material certificates for seals proving FDA compliance
  • Material certificates for stainless steel 316 contact parts
  • Measurement and documentation for roughness of contact surfaces
  • Welding documentation for contact parts
  • Air filter on machine air supply for blowing after filling
  • Air exhaust from pneumatic installation and heater for cleanroom
  • IQ/OQ protocols

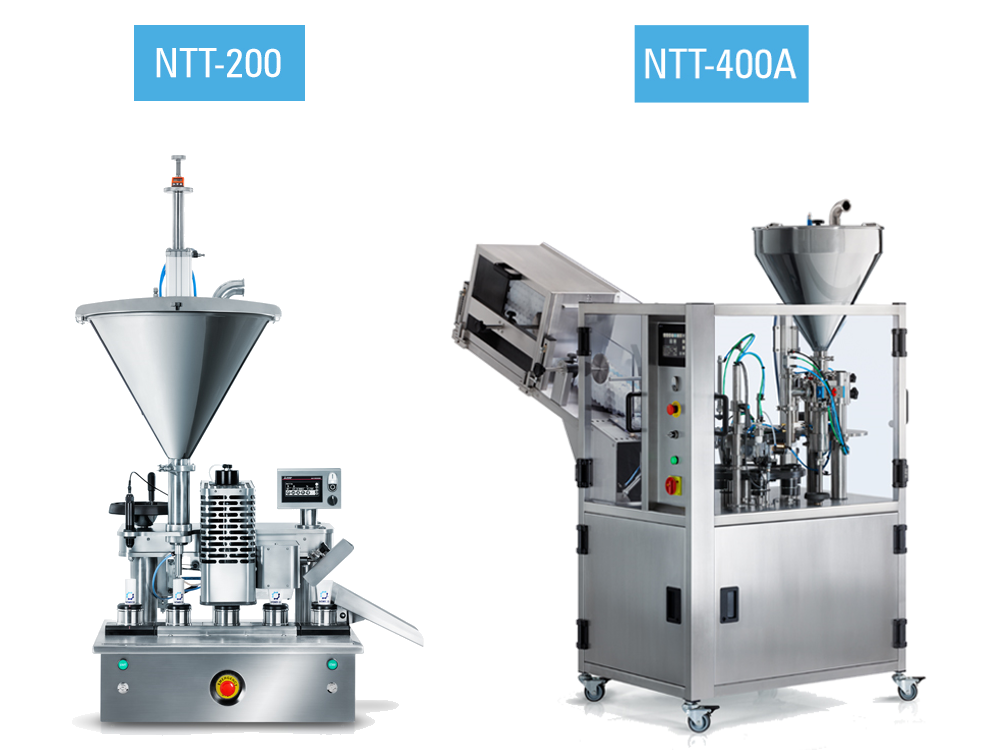

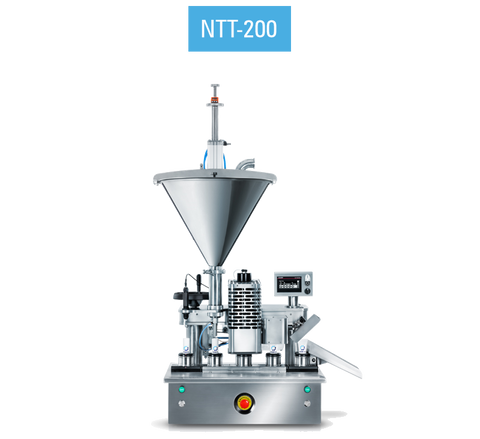

NTT-200 PH Tube Filling and Sealing Machine

  • Uses the same hot air sealing technology found on larger machines
  • Ideal for short run production jobs spanning multiple SKUs
  • Models available for plastic/laminate tubes or aluminum tubes
  • A single operator can run the entire production job, minimizing labor costs
  • Output of 12 tubes per minute, perfect for low volume production runs
  • Compact, portable, tabletop design allows for flexible installation options and locations
  • Excellent European build quality for reliable, continuous production use

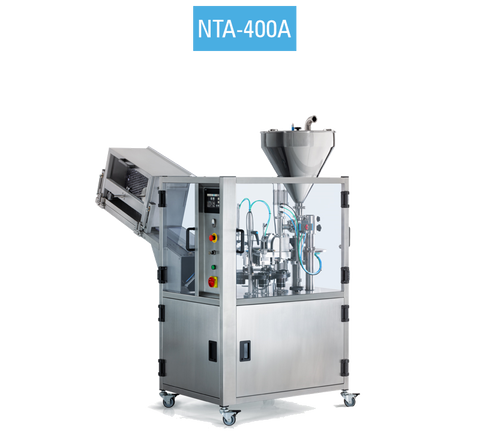

NTT-400A PH Tube Filling and Sealing Machine

  • 40 tubes per minute running plastic and laminate tubes
  • 35 tubes per minute running collapsible aluminum tubes
  • Compact design requires minimal floor space, easy to move
  • Top quality components and construction, built in Europe
  • High quality-to-price ratio for the tube filling machinery market
  • USA based sales, support, training, parts, tooling, service and demonstrations
