TS15PU - Ultrasonic Tube Sealer and Trimmer

Tube Sealing Machine for Short-Production Runs

Features:

  • Seal All plastic and laminate tubes, ANY shape or size
  • Production speeds of up to 15 tubes per minute
  • Date / Lot Coding of all tubes already built-in
  • Seals through product contamination
  • Very low reject rate, less than 1%
  • Ultrasonic sealing eliminates 'flash' and 'ears' versus hot-air sealing methods

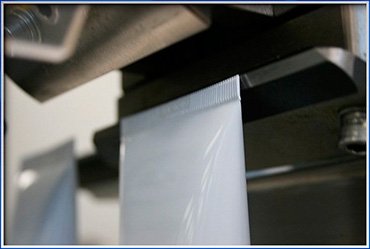

  • Rotary cutting knife to cleanly cut even the thickest tube materials
  • Change-over time of less than 5 minutes
  • Virtually NO CHANGE PARTS
  • Line operators can setup and run machine, no mechanics required
  • Training new operators is literally a 10-minute procedure, extremely simple
  • Small footprint, table-top design
  • Perfect for small production runs and lab use
  • No warm-up time needed, plug in and it's ready to seal tubes right away
  • No water requirement
  • Single phase, 110v power (no 3-phase power required)
  • Needs only a very small air compressor for air requirements


Tube Sealing Machine

Specifications:

  • Dimensions: 35.5" high, 20" wide, 25.5" long
  • Weight: 175lbs (79 kg)
  • Tube Length: 1" - 10"
  • Tube Diameter: 10mm - 57mm
  • Electrical: 110v, single-phase, 60 Hz
  • Air Requirements: 0.7 - 0.8 Mpa
  • Power: 1.6 KW
  • Ultrasonic Frequency: 20 Khz
